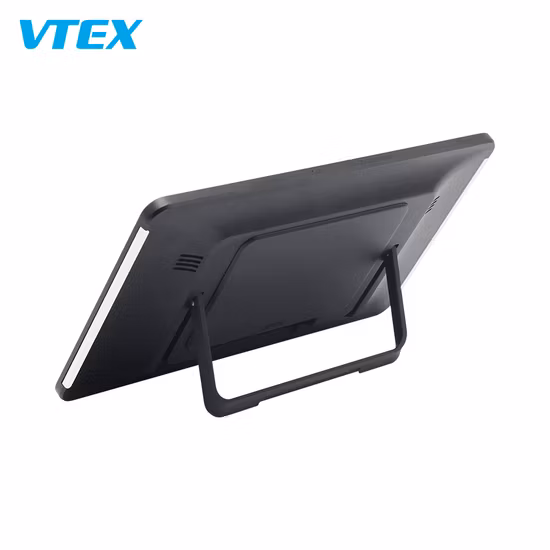

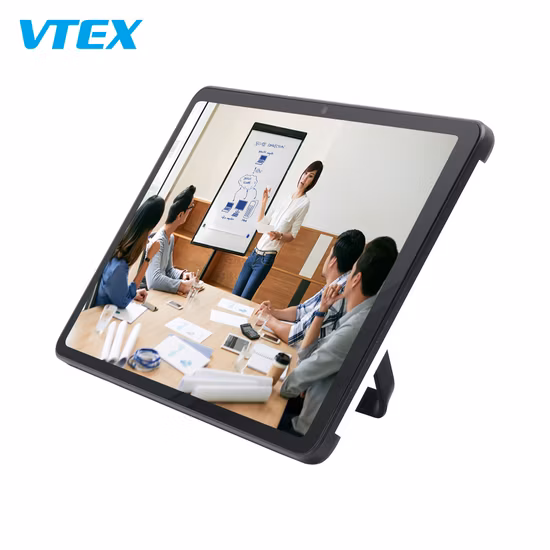

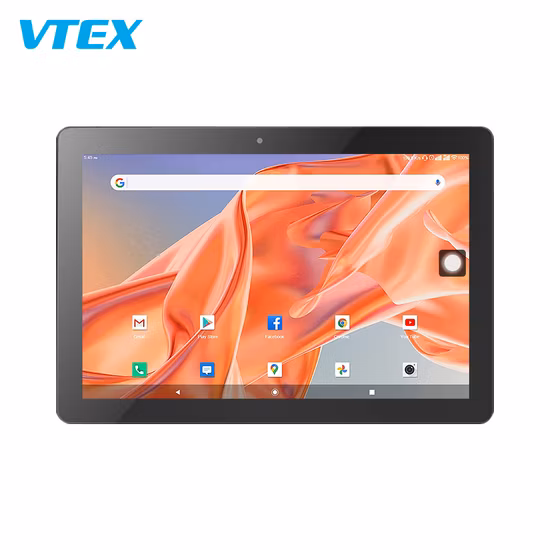

Wholesale All in One Wall Mounted 10 Points Capacitive Touch Panel Poe Android 11 Camera USB WiFi 2g RAM NFC 10.1 Inch Tablet PC

Overview

Basic Info.

Model NO.	HYY-T-10.1-A-P
Memory	2/4GB
Network Mode	WiFi, LAN
Hard Disk Capacity	16/32GB
CPU Type	Rk3566
CPU Core	Quad-Core
Webcam	Webcam
Battery Capacity	No Battery
Built-in Bluetooth	Built-in Bluetooth
Built-in Microphone	Built-in Microphone
Card Reader	Micro SD Card
Rear Camera Pixel	No
Front Camera Pixel	1MP-2MP
Fingerprint	Fingerprint
Operation System	Android 11
ROM	16GB
Contrast Ratio	800:1
Aspect Ratio	16;9
Resolution	1280*800
Size	10.1 Inch
RAM	2GB
CPU	Rk3566 Quad-Core 64-Bit Processor
Certificate	CE/SGS
Transport Package	Carton/Plywood Case/Aviation Case
Specification	Metal/Plastic Housing
Trademark	HYY
Origin	Guangdong China
HS Code	8528591090
Production Capacity	500000/Year

Packaging & Delivery

Package Size 29.00cm * 8.00cm * 30.00cm Package Gross Weight 1.500kg

Product Description

Wall Mount/Table Stand Android Tablet for retail, restaurants (as Digital Menu Boards), hotels, Supermarket, school, hospital, Catering industry, Gym, corporate and so on, support Android/Windows/Linux OS.
1. Support optional IR touch, Capacitive touch, printer, NFC, camera, POE, etc to meet variety of request from the market.
2. Support 7*24 Hours long time playback 3. FHD, Ultra High Definition UHD, 4K different Resolution are optional, Grade A, LED Back Light, Different screen diagonal ,10.1",11.6", 13.3",14", 15.6",18.5", 21.5", 32", 43", 49", 55", 65".4. Metal housing and Plastic housing option.5. With wall mounting bracket, support portrait or landscape installation. Android 7.1/9.0/10.0/11 available
6. Interface: Micro SD Card, USB, Serial Port, Headphone Jack, OTG Port, RJ45
7. POE part is optional Related Products

Product Description

LCD size:	10.1 inch
CPU:	RK3566 Quad-core 64-bit processor
RAM:	2GB/4GB
ROM:	16GB/32GB
Operation system:	Android 5.1/6.0/8.1/9.0/11 or Linux
Resolution:	1280*800
Viewing angles:	85/85/85/85(L/R/U/D)
Display mode:	IPS
Contrast ratio:	800:1
Luminance:	250cdm2
Aspect ratio:	16:9
Touch:	10 points capacitive touch
USB:	USB2.0 *1 USB3.0*1 (Expandable More)
Power Adapter:	DC Power 12V-2A Input
RJ45:	100Mbps Ethernet interface(POE optional)
Wi-Fi:	2.4G(802.11b/g/n) 5G(802.11a/ac)
Bluetooth:	Bluetooth 4.0
Sound:	2*2W Speaker support 3.5mm headphone jack
Camera:	2.0MP
VESA:	100x100mm
Language:	Support multiple languages
Operating Temperature:	-20ºC-70ºC
More Features:	Support HDMI output and Micro SD Card expand

Product Sizes

HYY Products Advantage:We Produce Floor Stand Advertising LCD Display, Wall Mount LCD Screen, Android Tablet, Infrared/Capacitive/Resistive Touch Screen, Industrial PC, Digital Signage and so on. The size is available from 7 inch to 86 inch. CE, ROHS certificate, exported to more than ninety countries (Germany, France, Spain, Belqium, Holland. USA, United Kingdom, Finland, Portugal, Australia, Singapore and so on).
Wall Mount/Table Stand Android Tablet for retail, restaurants (as Digital Menu Boards), hotels, Supermarket, school, hospital, Catering industry, Gym, corporate and so on, support Android/Windows/Linux OS.
1. Support optional IR touch, Capacitive touch, printer, NFC, camera, POE, etc to meet variety of request from the market.
2. Support 7*24 Hours long time playback 3. FHD, Ultra High Definition UHD, 4K different Resolution are optional, Grade A, LED Back Light, Different screen diagonal ,10.1",11.6", 13.3",14", 15.6",18.5", 21.5", 32", 43", 49", 55", 65".4. Metal housing and Plastic housing option.5. With wall mounting bracket, support portrait or landscape installation. Android 7.1/9.0/10.0/11 available
6. Interface: Micro SD Card, USB, Serial Port, Headphone Jack, OTG Port, RJ45
7. POE part is optional

Floor Stand LCD Display for airport, hotel, Bank, Metro station and so on. support Android/Windows/Linux OS.
1. Support optional IR touch, Capacitive touch, printer, NFC, camera, etc to meet variety of request from the market. 2. Support 7*24 Hours long time playback 3. FHD, Ultra High Definition UHD, 4K different Resolution are optional, Grade A, LED Back light, Different screen diagonal ,32", 43", 49", 55", 65".4. Metal housing have good heat dissipation effect and tempered glass can protect screen effectively.5. Supporting connecting WIFI, Ethernet, 4G(option) to achieve different Internet connection access.
Stretched Bar LCD Display for bus/metro, airport and other transportation, Shopping mall, retail shop, replacement of the traditional paper display and so on. 1. Greatly improving the layering of the picture, and better performance of details; Wide color range.
2. Sync play or Play as a video wall.
3. Shelf edge LCD display with narrow bezel, advertisements are displayed without blocking the sight of consumers.
4. Support WIFI/LAN, 3G/4G(optional).
Raspberry Pi LCD Screen for ATM, Fitness Equipment, Home Automation, Self-service Terminals, Vehicle Navigation, Industrial Device, Hospital, Printer Display and so on.
1. Top Seller size are 7 inch and 10.1 inch
2. 1024 x 600 resolution, with HDMI port
4. PCAP/Capacitive Touch Screen
5. TFT LCD Display Monitor

FAQ

1
Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply 7'' 8'' 10.1'' 11.6'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2
Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3
Q: If the customized do you support?
A: Yes, we can do OEM and ODM. we supplied different customized service for customers, such as the color, camera, wheel, printer, card reader and so on.
4
Q: Which OS do you supply?
A: Windows, Android and Linux. The Version depending on customers' need.
5
Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
6
Q:How about the warranty?
A: We supply one year warranty.
7
Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
8
Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
